Softlog System’s line of production-grade in-circuit flash programmers ensures a smooth transition from development into production. The programmers easily scale for high-volume production, offering up to 64 true parallel programming channels in daisy chain configuration to meet the needs of your production environment.
Our family of programmers is universal. Each programmer was developed to work with all silicon manufacturers, including Microchip, ST, NXP, Nordic, Cypress, Texas Instruments, Silicon Labs and GigaDevice.
Softlog System’s proprietary Advanced G3 Technology ensures forward and backward compatibility with previous hardware versions, as well as total interoperability between our different products.
Each programmer uses the same hardware and software base, enabling you to upgrade your production capabilities without fully rebuilding your production environment.
Additionally, Softlog makes it easy to add new families and algorithms as needed for every project, further ensuring the long-term viability of our products.
Softlog’s Secure Programming feature protects the unique firmware that controls your product. It adds multiple layers of protection to your business-critical intellectual property, dramatically reducing the risk of stolen firmware during production.
All our ICP programmers work interchangeably with one another, making it easy to upgrade or switch units. They share a common user interface, DLL/Command Line, and common features for a seamless production experience
|
|
 |
 |
 |
 |
|---|---|---|---|---|
|
Product Name |

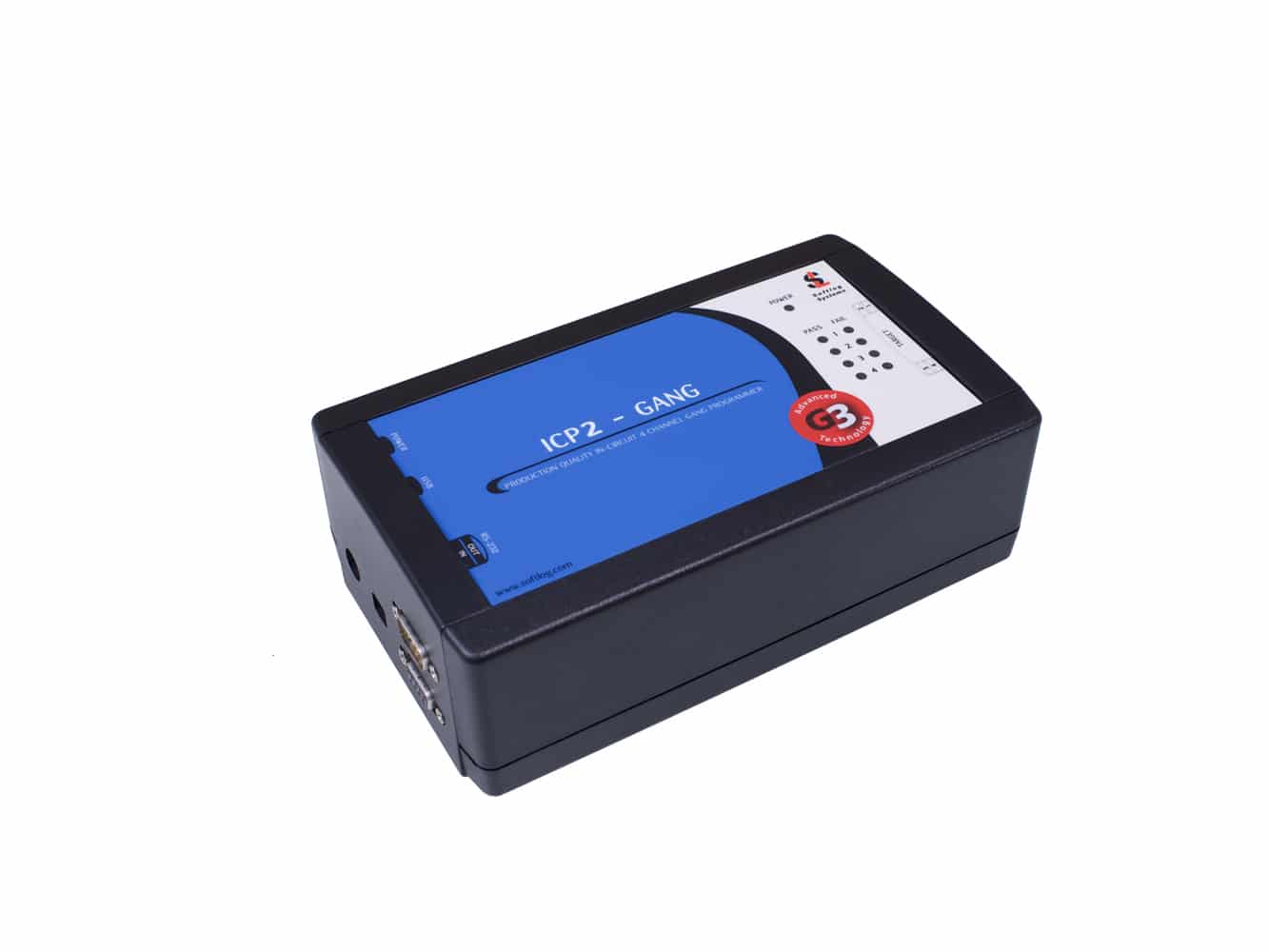

ICP2-GANG(G3) |

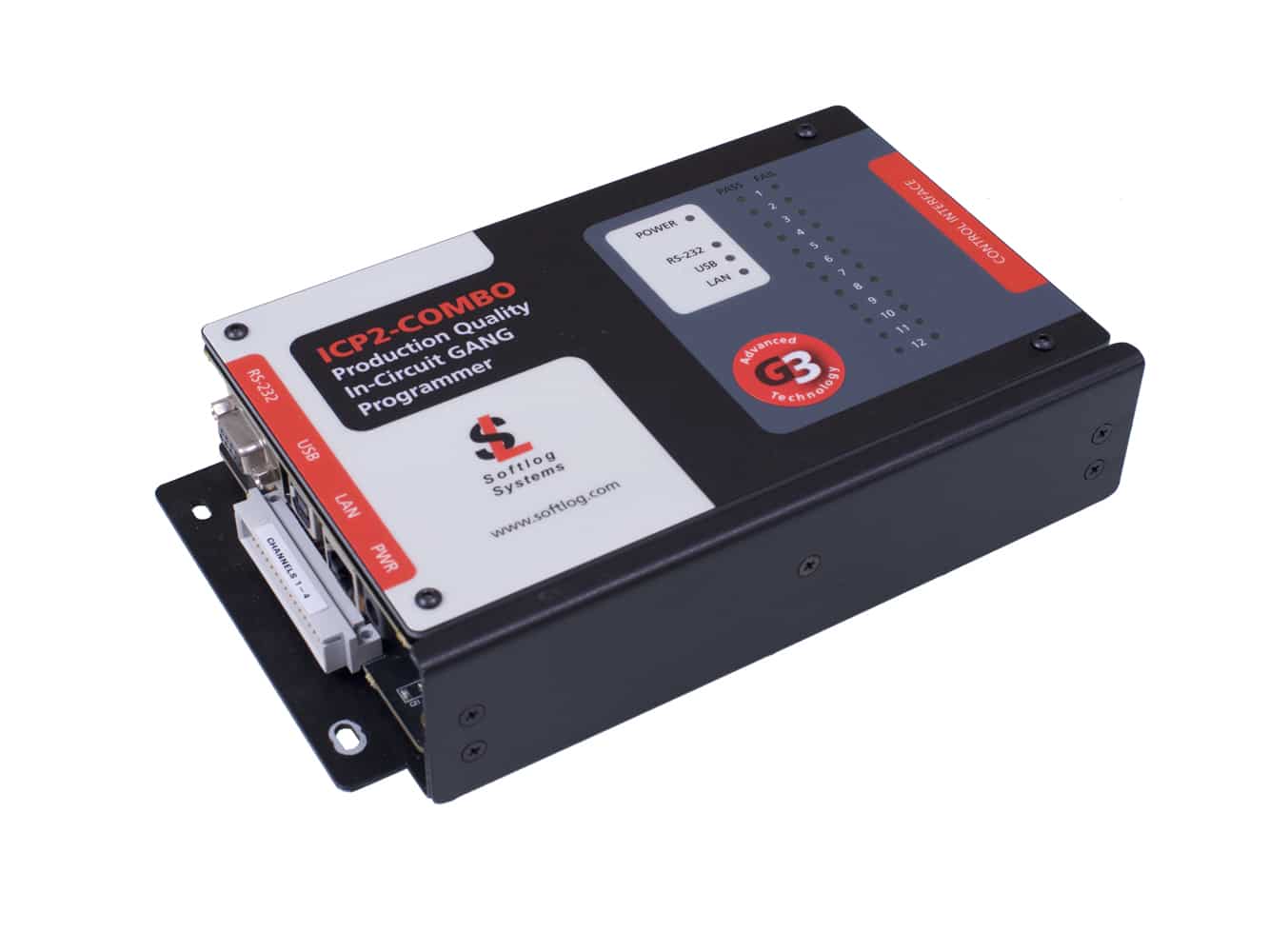

ICP2-COMBO(G3)-4 |

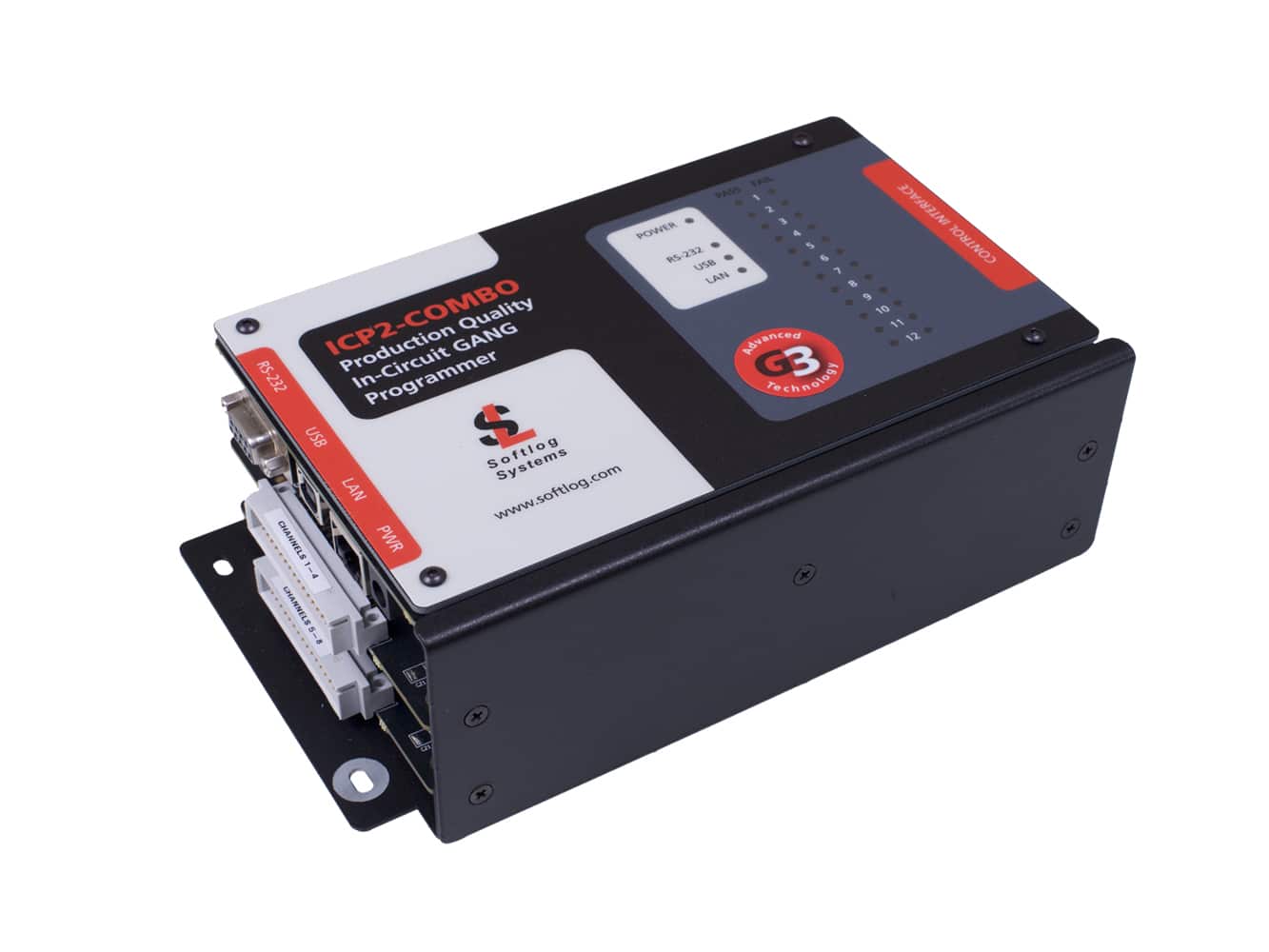

ICP2-COMBO(G3)-8 |

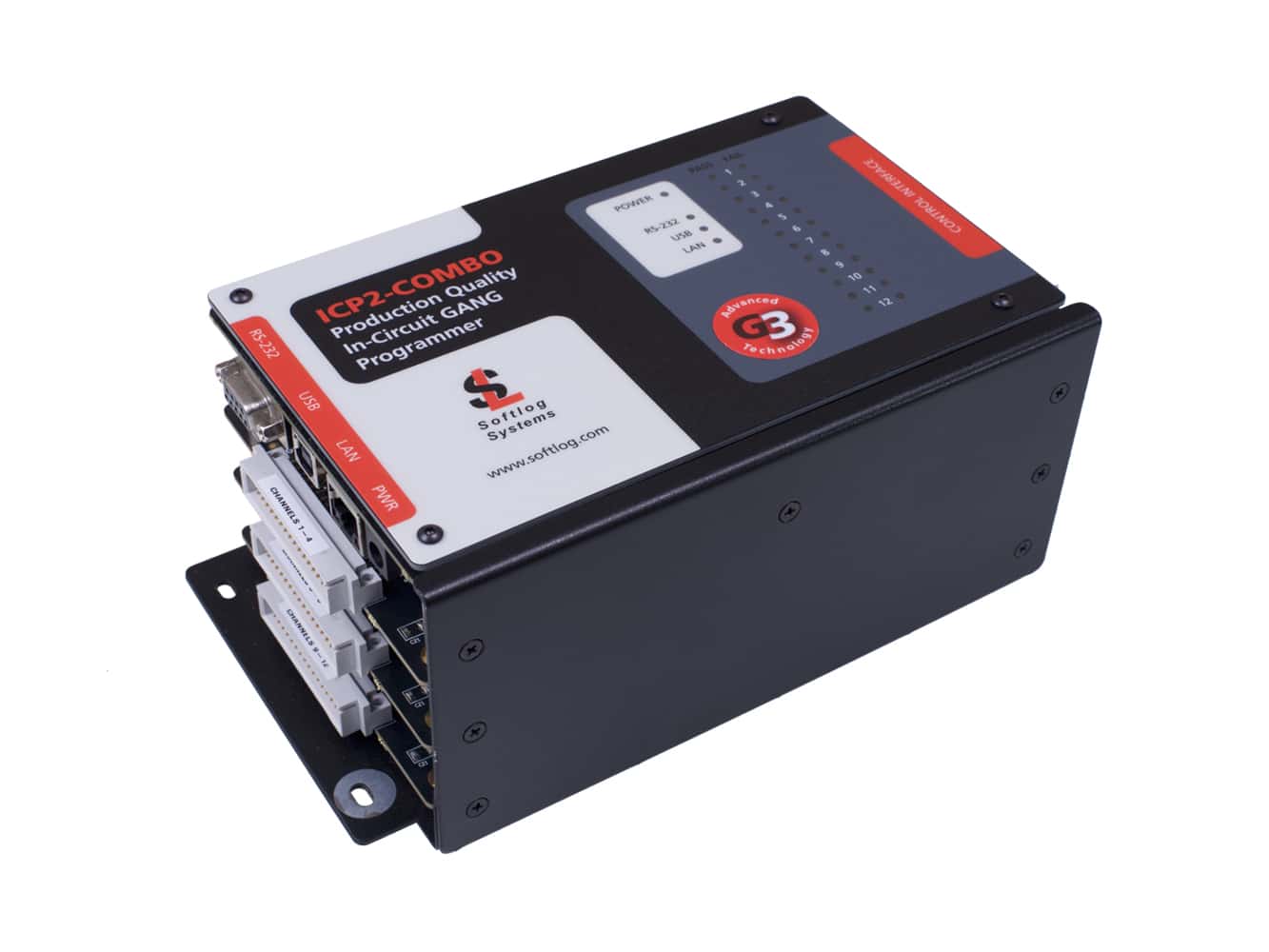

ICP2-COMBO(G3)-12 |
|
Primary Use |
Heavy mass production |
Heavy mass production |
Heavy mass production |
Heavy mass production |
|
Dimensions (w/o wings and connectors) |
195 x 110 x 68 mm |
215 x 118 x 44 mm |
215 x 118 x 44 mm |
215 x 118 x 90 mm |
|
Number of Channels |
4 |
4 |
8 |
12 |
|
Mechanical |
Plastic enclosure |
Metal, open frame |
Metal, open frame |
Metal, open frame |
|
GANG Chain Connection |
Yes, till 64 channels |
Yes, till 64 channels |
Yes, till 64 channels |
Yes, till 60 channels |
|
Environment Storage |
Flash 32MByte (per channel)  |
Flash 32MByte (per channel)  |
Flash 32MByte (per channel) |
Flash 32MByte (per channel) |
|
Number of Environments |
up to 512 (per channel) |
up to 512 (per channel) |
up to 512 (per channel) |
up to 512 (per channel) |
|
Secure Programming |
Yes (optional) |
Yes (optional) |
Yes (optional) |
Yes (optional) |
|
Gap Eliminator |
Yes |
Yes |
Yes |
Yes |
|
DLL / Advanced Command Line |
Yes (optional) |
Yes (optional) |
Yes (optional) |
Yes (optional) |
|
Same Software and Firmware |
Yes |
Yes |
Yes |
Yes |
|
Fully Standalone Serialization |
Yes |
Yes |
Yes |
Yes |
|
Fully Standalone Calibration |
Yes |
Yes |
Yes |
Yes |
|
OEM Solution Center |
Yes |
Yes |
Yes |
Yes |
|
Opto-relay barrier |
- |
Yes |
Yes |
Yes |
|
USB Interface |
Yes |
Yes (isolated) |
Yes (isolated) |
Yes (isolated) |
|
LAN Interface |
- |
Yes (isolated) |
Yes (isolated) |
Yes (isolated) |
|
RS-232 Interface/Connector |
D-type 9F |
D-type 9F (isolated) |
D-type 9F (isolated) |
D-type 9F (isolated) |
|
Isolated GO/PASS/FAIL |
- |
Yes (per channel) |
Yes (per channel) |
Yes (per channel) |
|
Isolated Environment Switch |
- |
Yes |
Yes |
Yes |
|
Target Connector |
D-type 15F (per channel) |
DIN-48 (1per 4 channels) |
DIN-48 (1per 4 channels) |
DIN-48 (1per 4 channels) |
|
PASS and FAIL LEDs |
Yes (per channel) |
Yes (per channel) |
Yes (per channel) |
Yes (per channel) |
|
VDD Current Limit |
250 mA (per channel) |
250 mA (per channel) |
250 mA (per channel) |
250 mA (per channel) |
|
VDD and VPP Hardware Current Limit |
Yes |
Yes |
Yes |
Yes |
